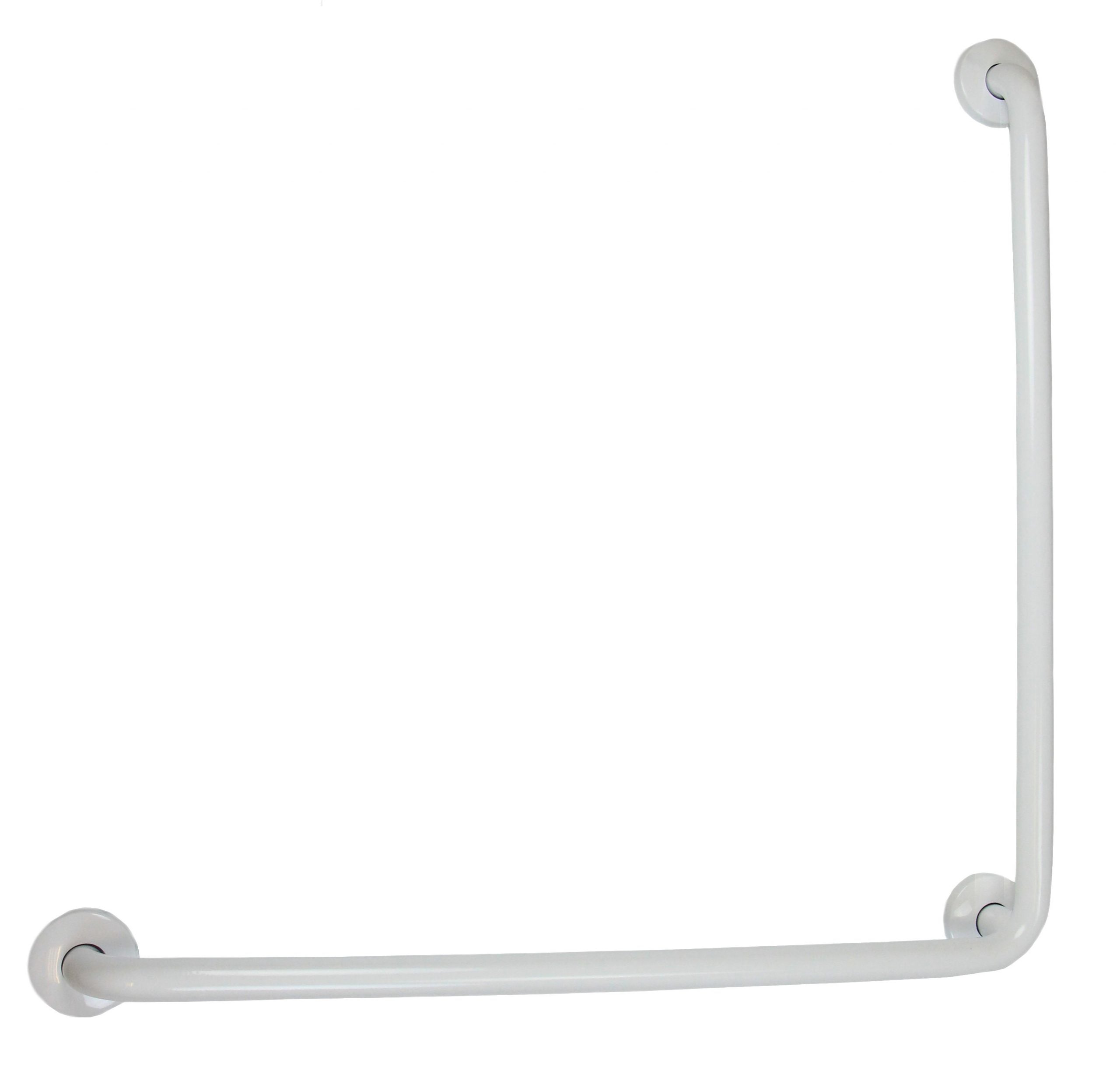

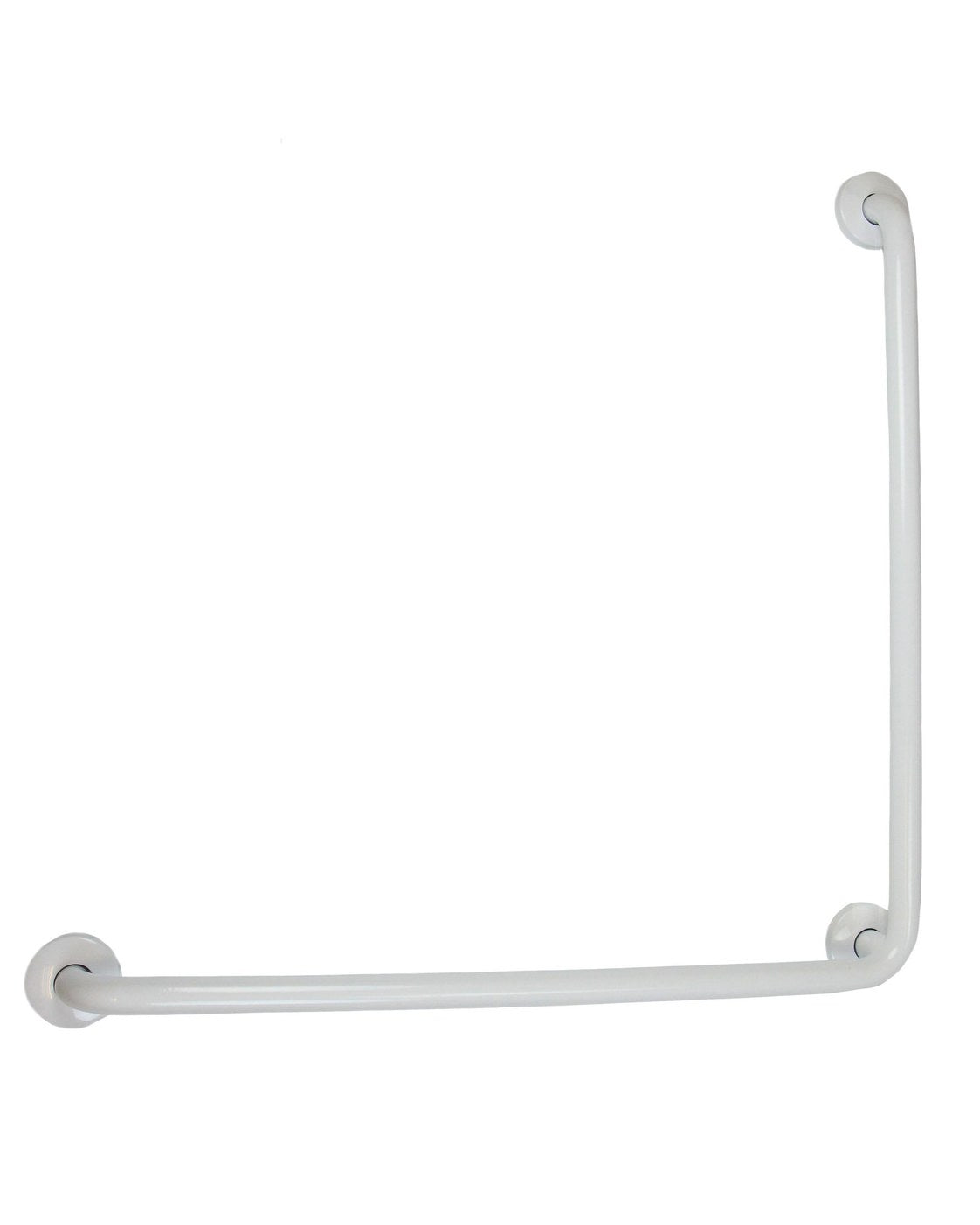

Frost 1003-W white epoxy-coated stainless grab bar 30x30
Frost

Frost 1003 90° Grab Bar — Stainless, White or Matte Black

Sale price$168.00
Model:
Authorized Distributor
Stocked in North Vancouver, BC
Pickup & Delivery Across BC
Trade & Professional Grade

Need volume pricing, system advice or a trade account?

Call 250-233-3000 Contact / Trade Account

Technical Documentation

Technical Data Sheet
TDS (PDF)

Always confirm values against the current TDS & SDS before specifying or ordering.

✅ Usually In Stock — North Vancouver, BC. Most Frost washroom accessories are stocked locally and ready for quick pickup; special-order sizes and finishes ship from Frost and pre-orders are welcome. We confirm availability and pickup or shipping timing within one business day of every order. Call 250-233-3000 to check today's stock.

Frost 1003 Series — 90° L-Shaped Grab Bar

Type-304 Stainless Grab Bars Rated Over 900 lb — 1-1/4 or 1-1/2 in. Diameter, Peened Grip, Made in Canada | Brand: Frost Products | Model: 1003 Series

The Frost 1003 Series is a 90-degree L-shaped grab bar giving both horizontal and vertical gripping sections beside water closets and in shower stalls. Bars are 18-gauge Type-304 stainless steel tubing with a peened grip, on 12-gauge stainless snap flanges bead-welded a full 360 degrees to the tubing — concealed snap-on mounting with no exposed screws. Wall clearance is 1-1/2 in. (38 mm), and properly installed bars support loads in excess of 900 lb (408 kg). Choose 1-1/2 in. diameter (NP models, including antimicrobial matte black), 1-1/4 in. diameter (SP models, including white epoxy over stainless), or the handed 40 x 30 in. transfer-wall configuration. Browse the full washroom accessories range at Canopus Supply.

Professional note: Barrier-free requirements for bar diameter vary by jurisdiction — 1-1/2 in. and 1-1/4 in. diameters are both offered to suit the code in force; confirm against your project specification. Grab bars must anchor into concealed backing capable of developing the rated load. The white model is epoxy-coated stainless steel, not painted mild steel, and the matte black finish is antimicrobial per Frost.

Performance Highlights

Material
18-gauge Type-304 stainless tubing, peened grip		 Flanges
12-gauge stainless, 360° bead weld, snap-on concealed		 Load Rating
In excess of 900 lb (408 kg) properly installed
Diameters
1-1/2 in. (NP/BLK) or 1-1/4 in. (SP/W)		 Configurations
30x30, 36x36, 40x30 left or right hand		 Wall Clearance
1-1/2 in. (38 mm)

Typical Applications

  • Barrier-free toilet compartments (vertical + horizontal support)
  • Shower stalls and tub surrounds
  • Care facilities, schools and commercial washrooms
Related products at Canopus Supply:
Compare the Bobrick B-6898.99 90° grab bar and the ASI 3413 swing-up bar, or browse all washroom accessories.
Purchasing Note: All sales are intended for professional and trade purchasers. Before ordering, confirm diameter, configuration, hand (for 40x30), quantity, mounting requirements, pickup timing and delivery requirements. Product use and installation are the responsibility of the purchaser and installer.
Specifying a barrier-free washroom? Contact Canopus Supply — 250-233-3000

Frost Products — Canadian-Made Washroom Accessories

Technical information is provided for professional reference only. Product selection, backing, mounting height and final compliance remain the responsibility of the purchaser, installer and project specifier. Always confirm against the current Frost specification sheet and the building code in force.
